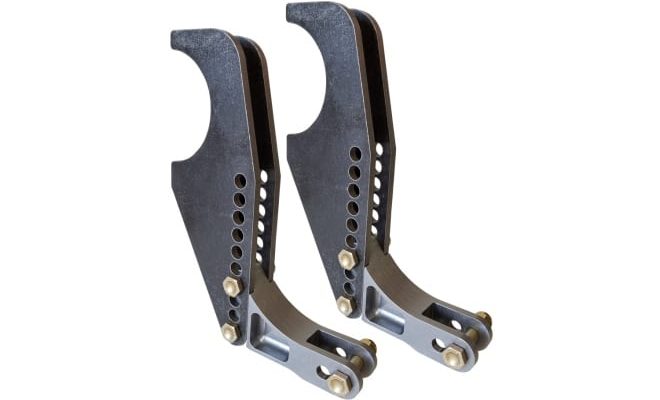

Quarter-Max’s New Billet Adjustable Double Shear Shock Mount Kit
Easily mount your coil-over shocks with Quarter-Max Chassis & Racing Components’ new high quality Billet Adjustable Double Shear Shock Mount Kit.
For customers that are not exactly sure of the final ride height or stance they want, or what shock length they need to order, having this adjustable shock mount allows for a wide range of adjustment after the build is completed, allowing the customer to keep their options open.
Quarter-Max also offers the option to integrate their billet adjustable shock mounts into any of their wide selection of 4-link kits. This added adjustability is a great addition to any car, from the street to the strip, especially for drag racers looking to potentially switch back and forth from large slicks to smaller drag radial tires.
For customers looking to participate in Drag Week, adjustable shock mounts are just the ticket to be able to raise the car for highway use and lower it down when you get to the race track.
The universal kit features housing brackets that are made of 1/4″ mild steel and fit 3″ O.D. axle tubes. The billet shock mount utilizes 3/8″ NAS bolts to mount to the bracket. A 3/8″ NAS bolt is used to mount the coil-over shock to the billet shock mount. The double shear shock mounts are made of 4140 and are available in 3/4″ wide to fit steel rod ends.
For added adjustability and fitment, there are two holes on the double shear shock mount, to allow the shock to be moved forward or back. This allows for fine tuning adjustments of the leverage ratio of the shock to the housing.
There is 4-1/2″ of height adjustment in 1/2″ increments between the billet shock mount and the brackets.
